Tool Holders / S-System End Mills
AEM90-TNG10-D32-C32-L170-Z05-H
AEM90-TNG series · see all 29 sizes
Insert compatibility
This size is built for the insert designation TNGX 1004 (as listed in the catalogue data).

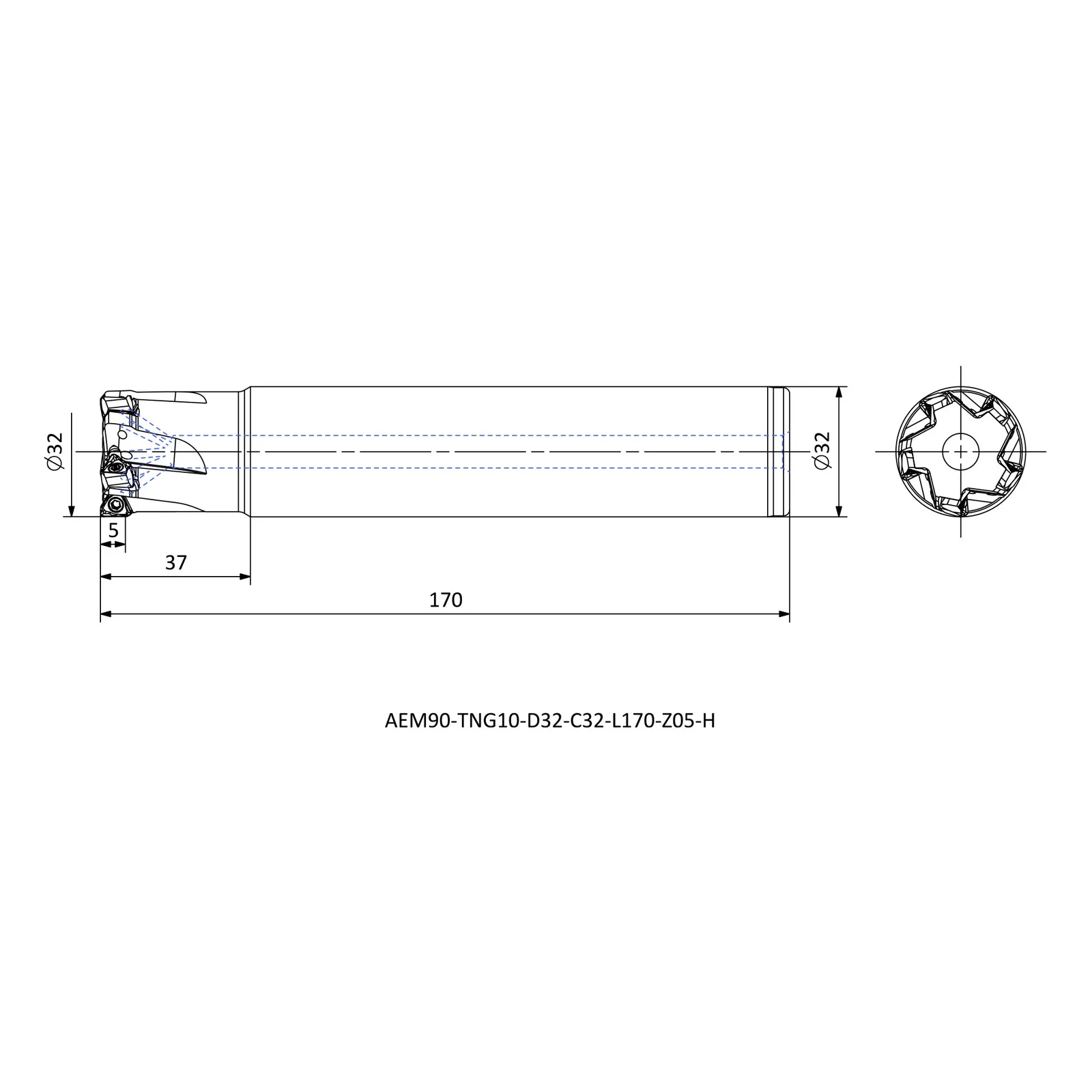

Specifications — AEM90-TNG10-D32-C32-L170-Z05-H
| Insert Code | Insert designation | TNGX 1004.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 32 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 170 |
| LH | Head length (mm) | 37 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
