Tool Holders / S-System End Mills
AEM90-TNG16-D25-C25-L170-Z02-H-80
AEM90-TNG series · see all 29 sizes
Insert compatibility
This size is built for the insert designation TNG 16 (as listed in the catalogue data).

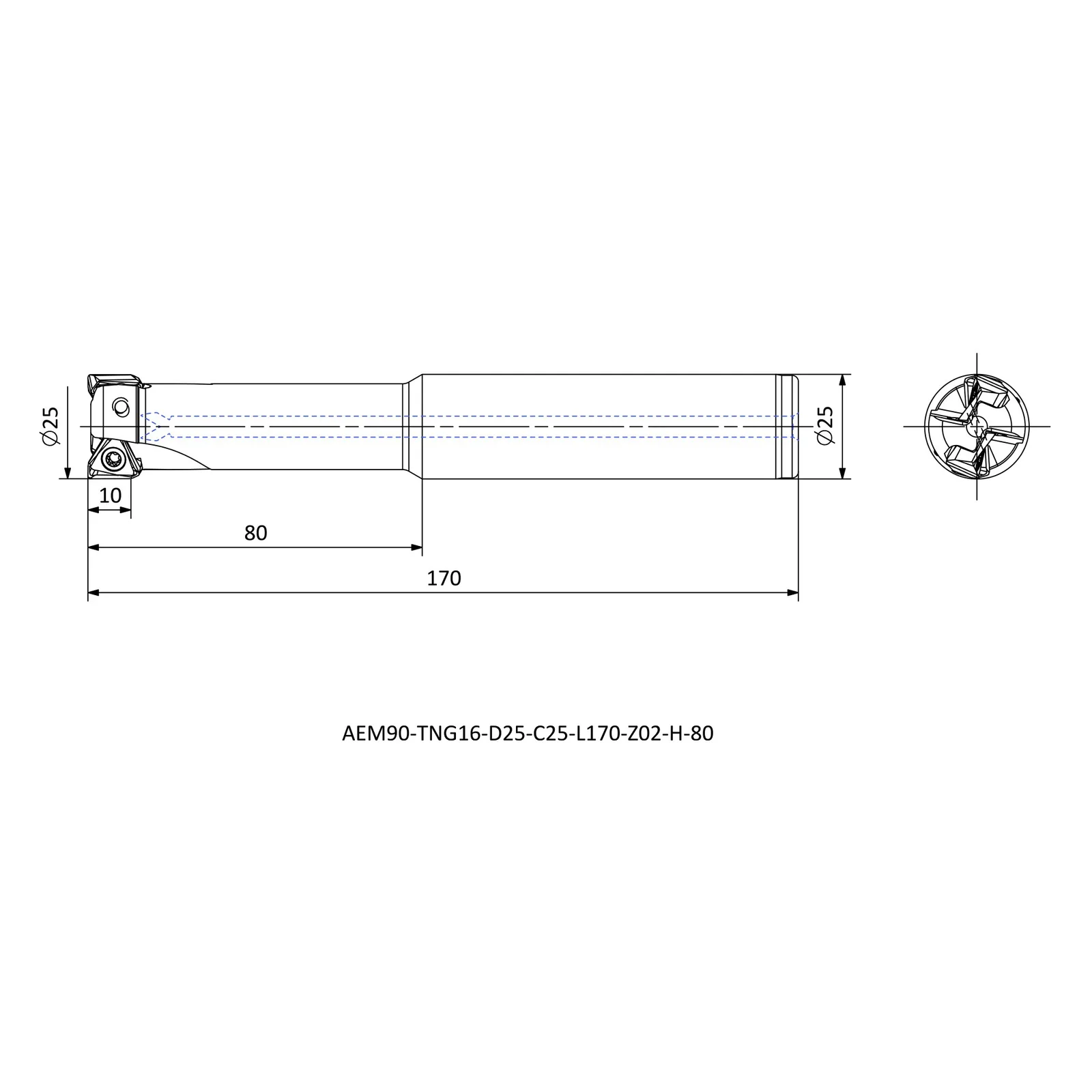

Specifications — AEM90-TNG16-D25-C25-L170-Z02-H-80
| Insert Code | Insert designation | TNG16 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 25 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 170 |
| LH | Head length (mm) | 80 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
