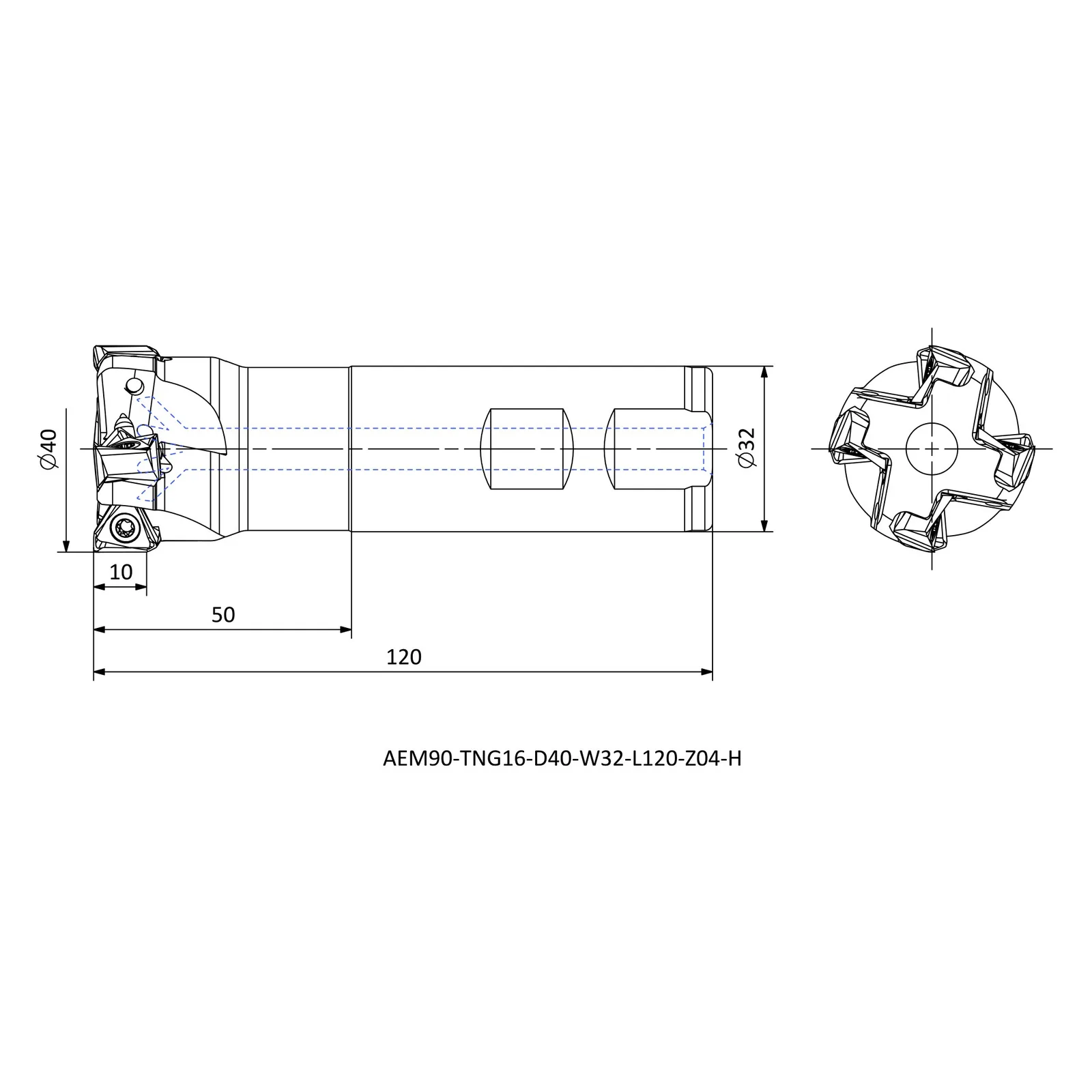

AEM90-TNG16-D40-W32-L120-Z04-H

Name: AEM90-TNG16-D40-W32-L120-Z04-H
Brand: Axior
SKU: AEM90-TNG16-D40-W32-L120-Z04-H

AEM90-TNG series · see all 29 sizes

This size is built for the insert designation TNG 16 (as listed in the catalogue data).

Specifications — AEM90-TNG16-D40-W32-L120-Z04-H

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Functional length (mm)
AEM90-TNG16-D32-C25-L195-Z02-H	R	32	25	195
AEM90-TNG16-D32-C25-L195-Z03-H	R	32	25	195
AEM90-TNG10-D20-C20-L150-Z03-H	R	20	20	150
AEM90-TNG10-D25-C25-L150-Z03-H	R	25	25	100
AEM90-TNG10-D20-W20-L90-Z02-H	R	20	20	90
AEM90-TNG10-D21-C20-L200-Z03-H	R	21	20	200
AEM90-TNG10-D32-C32-L170-Z04-H	R	32	32	170
AEM90-TNG10-D20-C20-L125-Z02-H	R	20	20	125
AEM90-TNG10-D32-C32-L170-Z05-H	R	32	32	170
AEM90-TNG10-D32-W32-L110-Z05-H	R	32	32	110
AEM90-TNG16-D25-C25-L170-Z02-H-80	R	25	25	170
AEM90-TNG16-D32-W32-L110-Z03-H	R	32	32	110
AEM90-TNG10-D20-C20-L125-Z03-H	R	20	20	125
AEM90-TNG10-D20-W20-L90-Z03-H	R	20	20	90
AEM90-TNG10-D28-W25-L100-Z04-H	R	28	25	100
AEM90-TNG16-D25-C25-L170-Z02-H	R	25	25	170
AEM90-TNG10-D25-C25-L150-Z04-H	R	25	25	150
AEM90-TNG10-D25-W25-L100-Z03-H	R	25	25	100
AEM90-TNG16-D35-C32-L195-Z04-H	R	35	32	195
AEM90-TNG10-D25-W25-L100-Z04-H	R	25	25	150
AEM90-TNG10-D32-W32-L110-Z04-H	R	32	32	110
AEM90-TNG10-D33-C32-L250-Z05-H	R	33	32	250
AEM90-TNG16-D32-C32-L195-Z03-H	R	32	32	195
AEM90-TNG10-D25-C25-L170-Z04-H	R	25	25	170
AEM90-TNG10-D26-C25-L250-Z04-H	R	26	25	250
AEM90-TNG16-D32-C32-L195-Z02-H	R	32	32	195
AEM90-TNG16-D32-C32-L195-Z02-H-80	R	32	32	195
AEM90-TNG16-D25-W25-L110-Z02-H	R	25	25	110
AEM90-TNG16-D40-W32-L120-Z04-H	R	40	32	120
