Tool Holders / S-System End Mills
AEM90-TNG16-D32-W32-L110-Z03-H
AEM90-TNG series · see all 29 sizes
Insert compatibility
This size is built for the insert designation TNG 16 (as listed in the catalogue data).

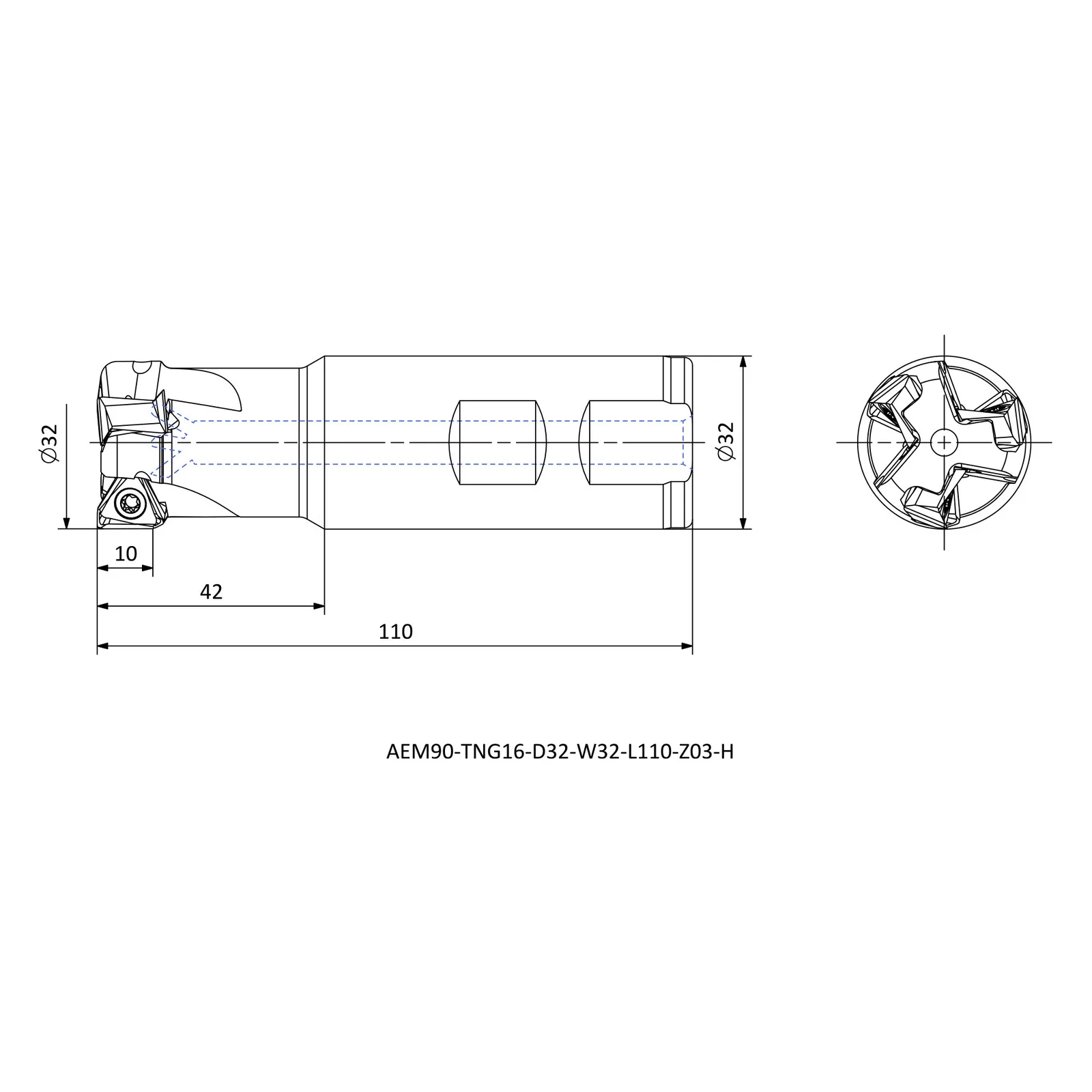

Specifications — AEM90-TNG16-D32-W32-L110-Z03-H
| Insert Code | Insert designation | TNG16 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 32 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 110 |
| LH | Head length (mm) | 42 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
