Tool Holders / Atum Drill
ATUM 14.5XD3 KDR 0502..
ATUM XD3 KDR series · see all 37 sizes
Insert compatibility
This size is built for the insert designation SPMT 050204 (as listed in the catalogue data).

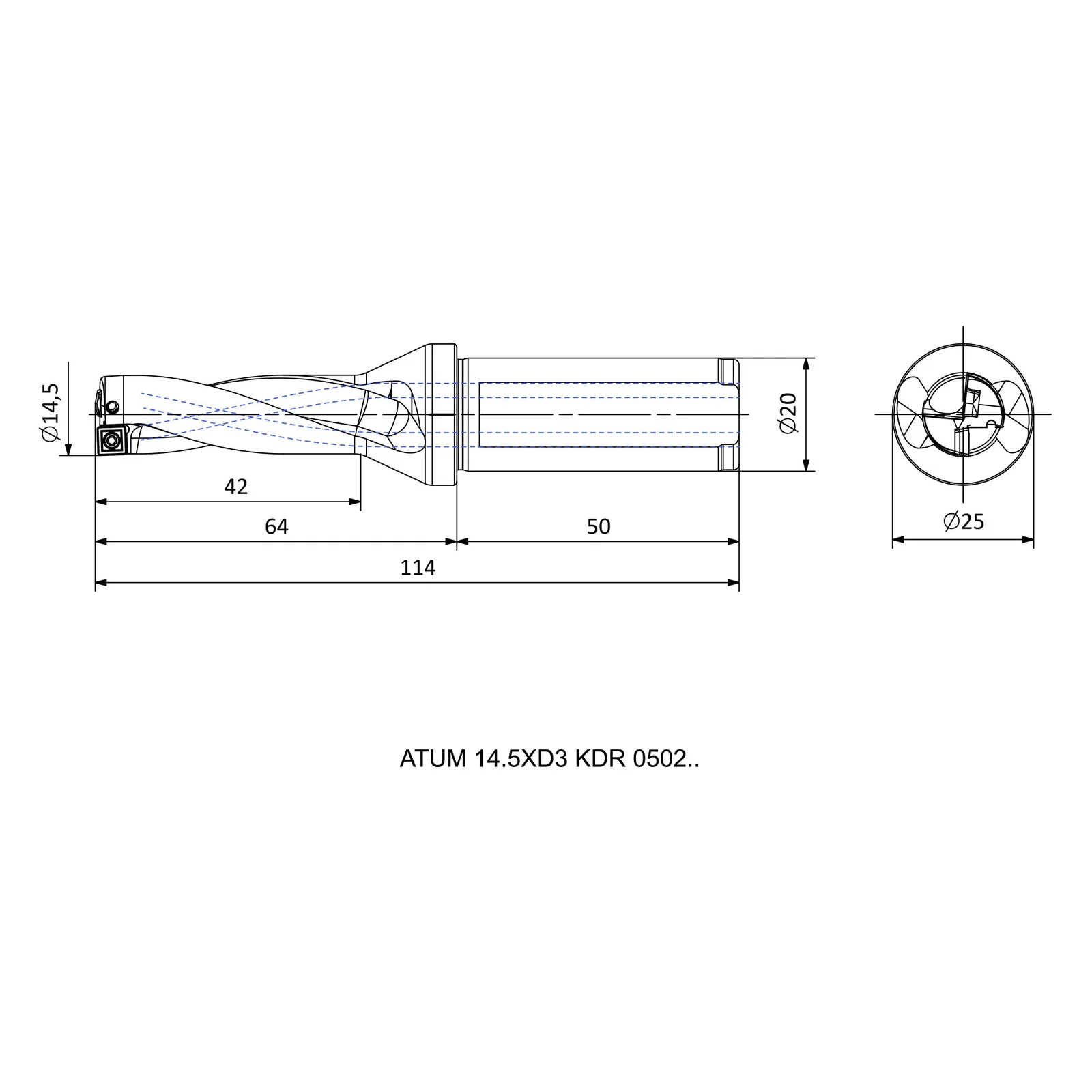

Specifications — ATUM 14.5XD3 KDR 0502..
| Insert Code | Insert designation | SPMT 050204 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 14.5 |
| DCON | Connection diameter (mm) | 20 |
| DCSFMS | Contact-face diameter, machine side (mm) | 25 |
| OAL | Overall length (mm) | 114 |
| LU | Usable length (mm) | 42 |
| LPR | Protruding / projection length (mm) | 64 |
| LS | Shank length (mm) | 50 |
| X max [mm] | Adjustment range, max (mm) | 0.25 |
| X min [mm] | Adjustment range, min (mm) | 15 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
