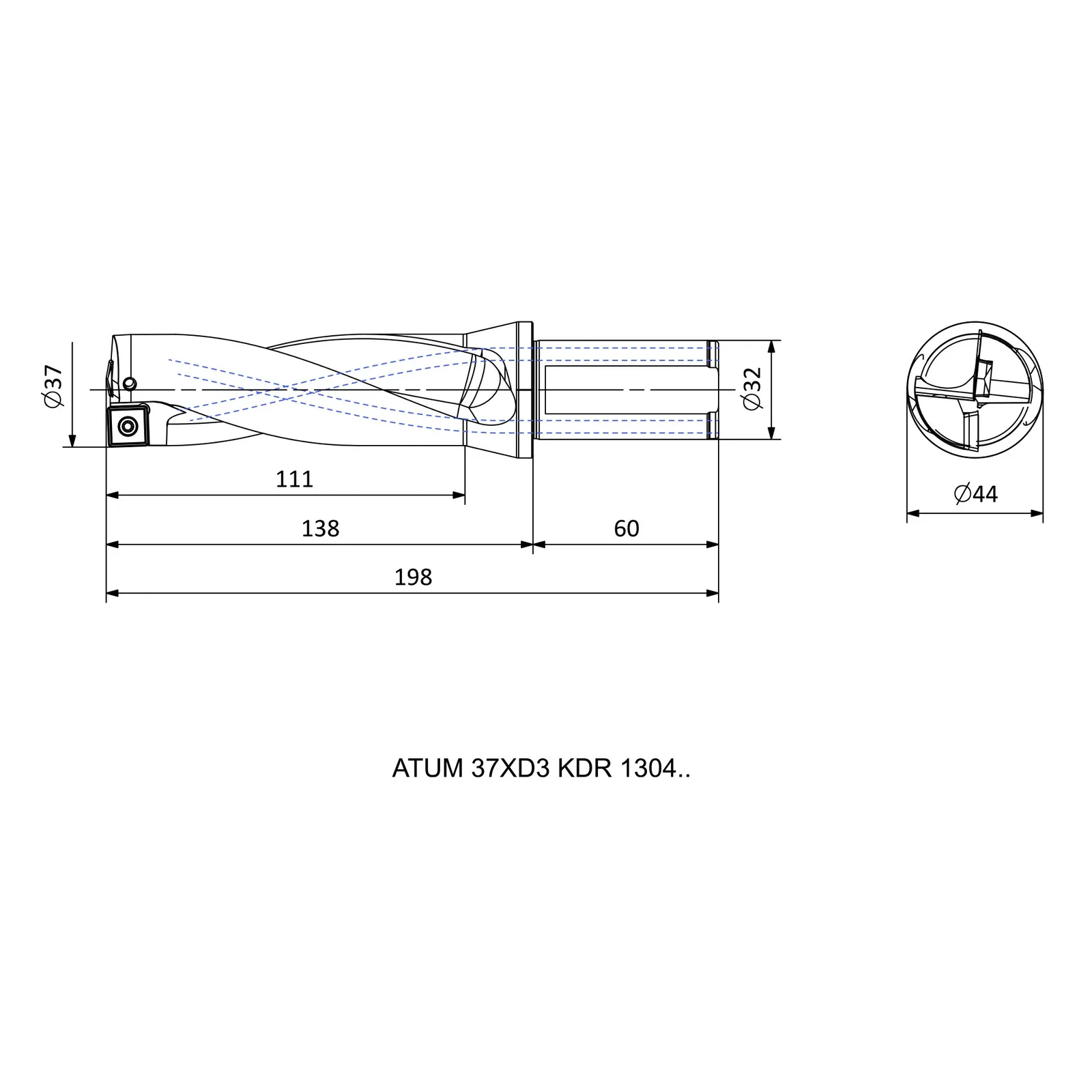

ATUM 37XD3 KDR 1304..

Name: ATUM 37XD3 KDR 1304..
Brand: Axior
SKU: ATUM 37XD3 KDR 1304..

ATUM XD3 KDR series · see all 37 sizes

This size is built for the insert designation SPMT 130410 (as listed in the catalogue data).

Specifications — ATUM 37XD3 KDR 1304..

Insert Code	Insert designation	SPMT 130410
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	37
DCON	Connection diameter (mm)	32
DCSFMS	Contact-face diameter, machine side (mm)	44
OAL	Overall length (mm)	198
LU	Usable length (mm)	111
LPR	Protruding / projection length (mm)	138
LS	Shank length (mm)	60
X max [mm]	Adjustment range, max (mm)	0.35
X min [mm]	Adjustment range, min (mm)	37.7

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 23.5XD3 KDR 07T2..	R	23.5	25	34
ATUM 12.5XD3 KDR 0402..	R	12.5	20	25
ATUM 13XD3 KDR 0402..	R	13	20	25
ATUM 14XD3 KDR 0502..	R	14	20	25
ATUM 14.5XD3 KDR 0502..	R	14.5	20	25
ATUM 15XD3 KDR 0502..	R	15	20	25
ATUM 15.5XD3 KDR 0502..	R	15.5	20	25
ATUM 16XD3 KDR 0502..	R	16	25	34
ATUM 16.5XD3 KDR 0602..	R	16.5	25	34
ATUM 17XD3 KDR 0602..	R	17	25	34
ATUM 17.5XD3 KDR 0602..	R	17.5	25	34
ATUM 18XD3 KDR 0602..	R	18	25	34
ATUM 18.5XD3 KDR 0602..	R	18.5	25	34
ATUM 19XD3 KDR 0602..	R	19	25	34
ATUM 19.5XD3 KDR 0602..	R	19.5	25	34
ATUM 20XD3 KDR 07T2..	R	20	25	34
ATUM 20.5XD3 KDR 07T2..	R	20.5	25	34
ATUM 21XD3 KDR 07T2..	R	21	25	34
ATUM 22XD3 KDR 07T2..	R	22	25	34
ATUM 22.5XD3 KDR 07T2..	R	22.5	25	34
ATUM 23XD3 KDR 07T2..	R	23	25	34
ATUM 24XD3 KDR 0903..	R	24	25	34
ATUM 24.5XD3 KDR 0903..	R	24.5	25	34
ATUM 25XD3 KDR 0903..	R	25	25	34
ATUM 26XD3 KDR 0903..	R	26	25	34
ATUM 27XD3 KDR 0903..	R	27	25	34
ATUM 28XD3 KDR 0903..	R	28	25	34
ATUM 29XD3 KDR 0903..	R	29	25	34
ATUM 30XD3 KDR 11T3..	R	30	32	44
ATUM 32XD3 KDR 11T3..	R	32	32	44
ATUM 33XD3 KDR 11T3..	R	33	32	44
ATUM 35XD3 KDR 11T3..	R	35	32	44
ATUM 34XD3 KDR 11T3..	R	34	32	44
ATUM 37XD3 KDR 1304..	R	37	32	44
ATUM 38XD3 KDR 1304..	R	38	32	44
ATUM 39XD3 KDR 1304..	R	39	32	44
ATUM 40XD3 KDR 1304..	R	40	32	44
