Tool Holders / Atum Drill

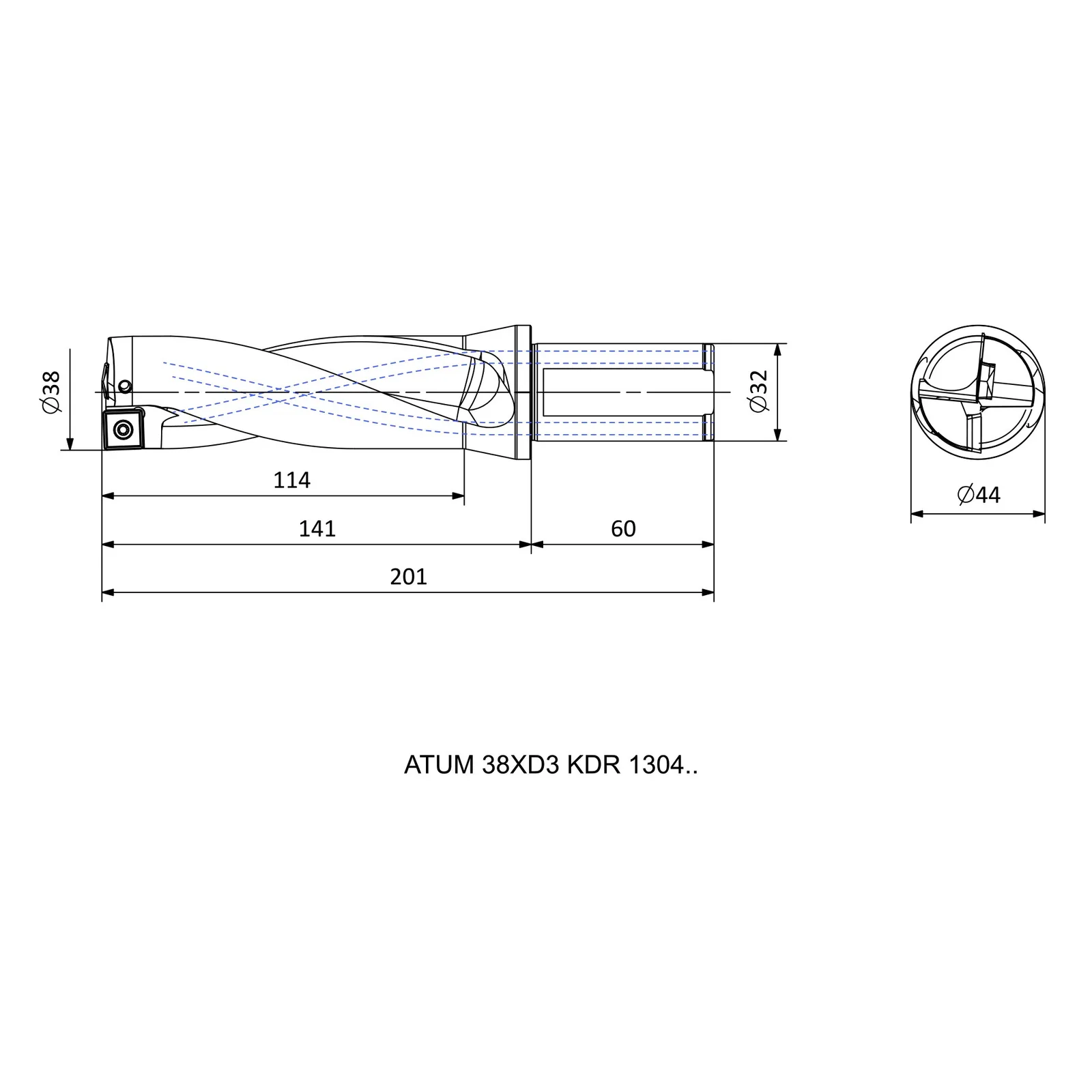

ATUM 38XD3 KDR 1304..
ATUM XD3 KDR series · see all 37 sizes
Insert compatibility
This size is built for the insert designation SPMT 130410 (as listed in the catalogue data).
Specifications — ATUM 38XD3 KDR 1304..
| Insert Code | Insert designation | SPMT 130410 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 38 |
| DCON | Connection diameter (mm) | 32 |
| DCSFMS | Contact-face diameter, machine side (mm) | 44 |
| OAL | Overall length (mm) | 201 |
| LU | Usable length (mm) | 114 |
| LPR | Protruding / projection length (mm) | 141 |
| LS | Shank length (mm) | 60 |
| X max [mm] | Adjustment range, max (mm) | 0.35 |
| X min [mm] | Adjustment range, min (mm) | 38.7 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
